Opis

SL3 is the smaller among the sliding operators, with no compromise on quality and performances.

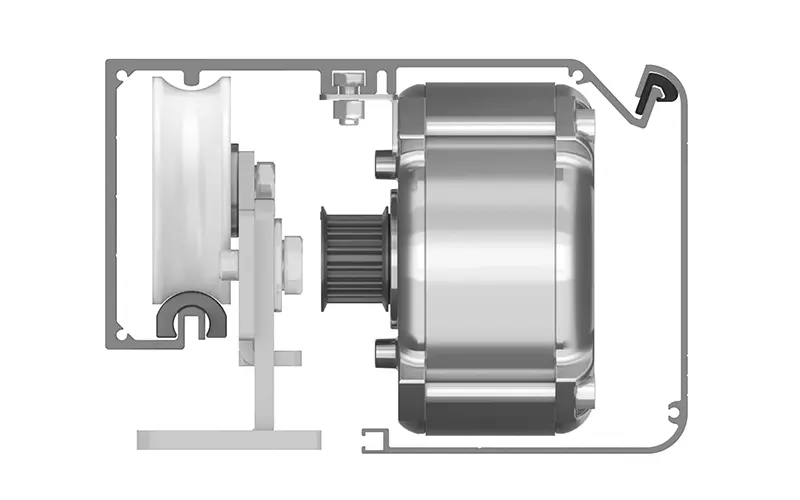

Like all the other SL series products, SL3 is equipped with a brushless motor and a powerful control panel.

It can move doors up to a maximum total weight of 120 kg.

Technical data

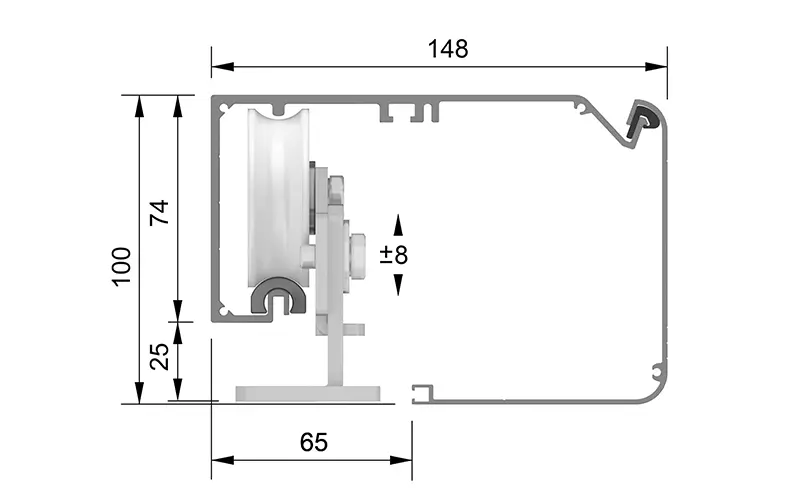

Dimensions:

100 x 148 x 6600 mm

Max load:

70 Kg – one leaf / 2 x 60 two leaves

Max speed:

0.8 m/s with one leaf –1.6 m/s for two leaves

Power supply:

100-240 V 50/60 Hz

Power (stand-by):

60 W (8 W)

Degree of protection:

IP20

Operating temperature:

-15 C° / +50 C°

Port:

USB
