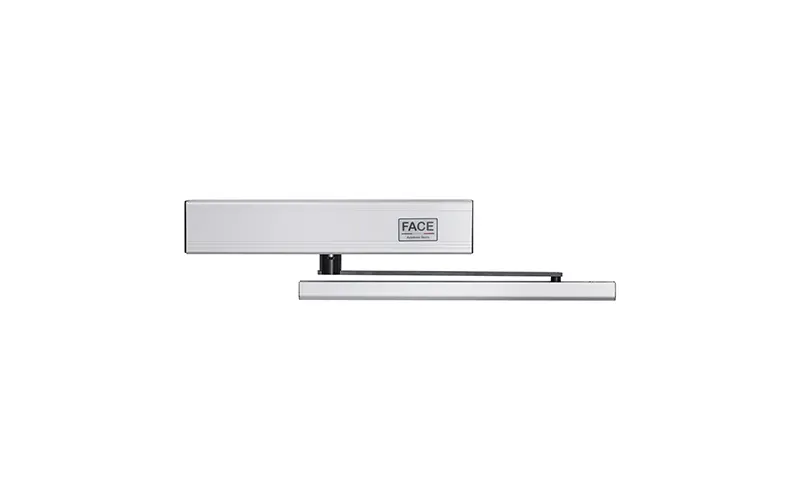

SW2 is the smaller automation in the swing range, but even with such compact dimensions it can be used for leaf up to 200 kg.

The core of this system is the brushless motor, that operates at a low speed and therefore it minimizes wear and costs of maintenance, with a service life that is ten times longer than a traditional DC motor.

Technical data
Dimensions:

82 x 117 x 443 mm

Max weight:

200 Kg x 0,8 m

Opening and closing time:

2 – 6 sec

Power supply:

100-240 Vac 50/60 Hz

Power (stand-by):

40 W (8 W)

Rated load:

20 Nm

Protection rating:

IP20

Operating temperature:

-15° C / +50° C

Connecting port:

USB
